HOME > PRODUCTS > EUROPE > Track Light > 30W 3000-3300LM XLINE LED LINEAR FIXTURE

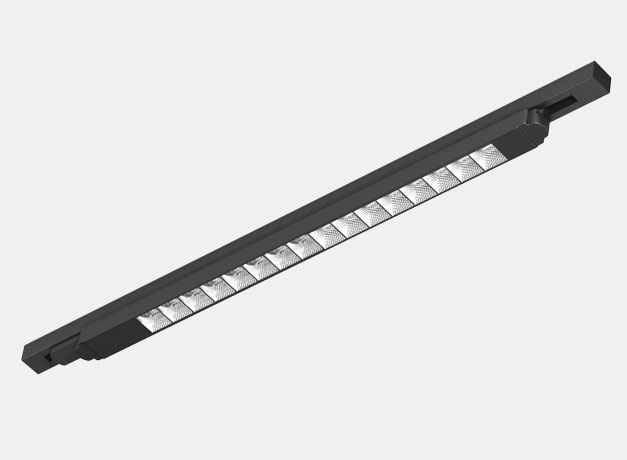

30W 3000-3300LM XLINE LED LINEAR FIXTURE

The Xline LED linear fixture features contemporary, sleek and compact design, thoroughly blending with interior architectures to add value and distinction. Highly energy efficient with an outstanding efficacy performance of 110LM/W,  these linear led track light fixtures are able to deliver adequate and uniform lighting for large commercial spaces where super bright lighting is required with significant energy savings.



Compatible with 4-wire 3-circuit track system, such led linear light bar fixture can work together with LED track spot lights based on the same rail track. In places where general lighting, accent lighting and wall washer lighting are required, Xline modern linear track lights are the good choice for providing one-stop lighting solutions. They are available in a different lighting distribution patterns including Single /Double wall washer lighting: 25°x90°,Batwing distribution of 85°x85° and Lambertian: pattern of 120°.






Base (standard designation):
DOWNLOAD
PDF
click to print page
  • photo name
  • photo name
  • photo name
  • photo name
  • photo name
  • photo name

FEATURES:

• Up to 110LM/W high efficacy, essential for directing adequate and comfortable illumination for various commercial lighting applications.

• Versatile lighting distribution patterns: Single /Double wall washer lighting: 25°x90°,Batwing distribution of 85°x85° and Lambertian: pattern of 120°.

• Included with the built-in track lighting adaptor, crucial for installation and ensuring modern ,clean and compact appearance.

• Use extrusion pure aluminum housing, beneficial to heat transfer and work stability.

• Equipped with advanced vacuum faceted coating reflector to guarantee the lighting comfort and uniformity .

• Passive cooling system with isolated circuit SELV Class II LED electronic control gear.

• Work together with other track spot lights on the same rail track of 4-wire 3 circuit track system

• Come with different color temperatures ranging from 2700K-5000K.


SPECIFICATION:

Product CodeKL-TR-035.30
Product Name30W 3000-3300lm LED  linear track lighting
Input voltage100-240V
Power30W
Power factor>0.95
DimmableNon-dim
Lumen Flux3000-3300LM
Beam AngleSingle /Double wallwash: 25°x90°; Batwing: 85°x85°; Lambertian: 120°
CCT Optial2700K/3000K/4000K/5000K
CRI Optial

CRI82

Dimension(mm)

928mmx48mmx57mm

FinishBK/WH/SL
