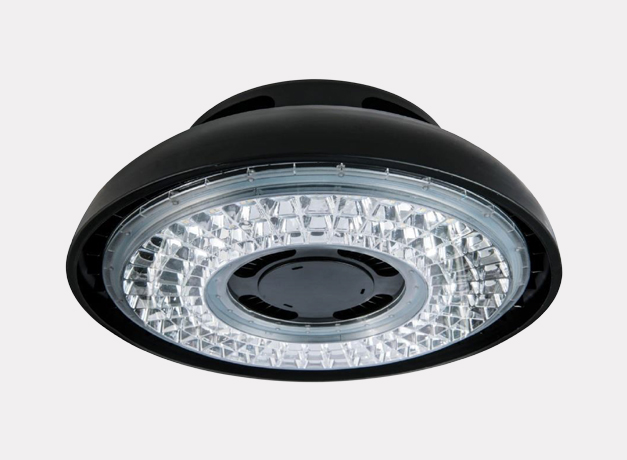

The 85-230W Annulight™ high bay luminaire is created to deliver super bright lighting ranging from 11000LM to 30000LM for high ceiling and large spaces. They are the perfect alternatives to conventional metal halide light fixtures from 250W-1000W but consume much less energy comparably. In places where high power shadow-free and uniform lighting is in need, Annulight™ led high bay luminaire is the good choice to provide the proper light level on every corner to ensure safety and work efficiency.
To improve lighting uniformity and comfort, Annulight™ new patent high bay lights are designed with UGR<19 and come equipped with 108 pieces highly efficient patented reflectors with shielding angle>26° . This state-of-the-art technical design is important to ensure glare-free and even lighting that helps prevent eyestrain and alleviate physical fatigue. Our Annulight™ high power led high bay luminaire is IP65 high rated with aluminum heat sink , featuring outstanding durability and good heat dissipation. It works well under severe environments such as high temperature spaces or wet locations.
FEATURES:
• High luminous efficacy up to 130LM/W, the perfect high power led high bay luminaires used for applications such as workshop, stadium, warehouse, logistics hub, transportation center, etc.
• Achieved with UGR<19 and conforming with EN12464 2011 standards to offer glare-free and even lighting over large spaces.
• Adopted with high rated pure aluminum heat sink to ensure good dissipation and outstanding durability
• The eco-friendly and recycling led light fittings without mercury or any other harmful elements.
• Come with three kinds of interchangeable optical lens of 60°, 80° and 110°for flexible and versatile lighting distributions.
• Easy and convenient installations with flexible mounting options: Surface-mounted, rod suspension mounted, hook mounted and wall mounted.
• Offer a wide range of color temperatures of 2700K,3000k,3500k,4000k,5000k
• Safe and endurable with CE,Rohs, SAA,FCC certification, the industrial high bay led lighting that meets high safety standards.
• Use Meanwell Driver( 100-277V, PF>0.95, MTBF>192Khrs) and 576pcs Samsung leds
• Long lifespan of 50,000hours with 5 years warranty
SPECIFICATION:
| Product Code | KL-HB-010.V24 |
| Produce Name | 200W LED high bay luminaire |
| Input Voltage | AC100-277V |
| Power | 200W |
| Power Factor | 0.95 |
| Dimmable | Non-dim |
| Lumen Flux | 25000lm |
| Beam Angle | 60°,80°,110° |
| CCT Optial | 2700K/3000K/3500K/4000K/5000K |
| CRI Optial | CRI82 |
| Certificates | SAA,FCC |
| UGR | 19 |
| Motion sensor | NO |
| Finish | BK |
| DxH(inch） | 15 3/4"X 7 1/2" |
ADVANCED AND OUTSTANDING ATTRIBUTES
MULTIPLE LIGHTING DISTRIBUTIONS
COME WITH BUILT-IN MOTION SENSOR (ONLY AVAILABLE FOR 88W,130W,160W,170W)
EASY AND VARIOUS MOUNTING OPTIONS
