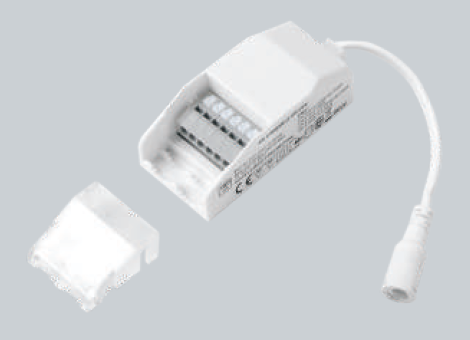

A super compact high quality independent LED driver with through wiring function. There are 6x1.5mm² push fit terminals for loop through with tool-less installation strain relief mechanical structure. Also, a 100mm length cable with 5521(female) DC connector provided for easy connecting to LED module, positioned and designed to reduce installation time/cost. It supplies constant current output, with 220-240VAC input. The compact size allow it to be inserted into a Min. 38mm cutout hole.
Application
For spot light and downlight in residential,retail and hospitality applications
Features & Benefits
· Constant current output
· Reliable, Class II, SELV according EN 61347
· Strain-relief and loop through function for quick installation.
· Through wiring with 6-hole push-fit type terminal(L,N,X,X,N,L)
· Permissible AC cable 0.75-1.5mm² wire gauge
· Working Ta=-20°C ~ +40°C
· Super mini size, suitable for Min. diameter 38mm cutout hole
Functions
· Overshot
· Output over voltage protection
· Short circuit Protection
· Over temperature Protection
| Product Code | 4.DR.035.003 |
| Produce Name | LEDGEAR 028 Mini Phase-cut Driver |
| Input Voltage | 220-240VAC |
| Power | 4W |
| Power Factor | 0.85 |
| Dimmable | Phase-cut Dimmable(Both leading and trialling edge) |
| LED Module | not included |
| Output Voltage | 16-20VDC (SELV output) |
| Constant Output Current | 180mA |
| Flicker Free | NO |
| Lifespan | 40,000hrs |
| Dimension | 66mm x 29.5mm x 21mm |
| Finish | White |
