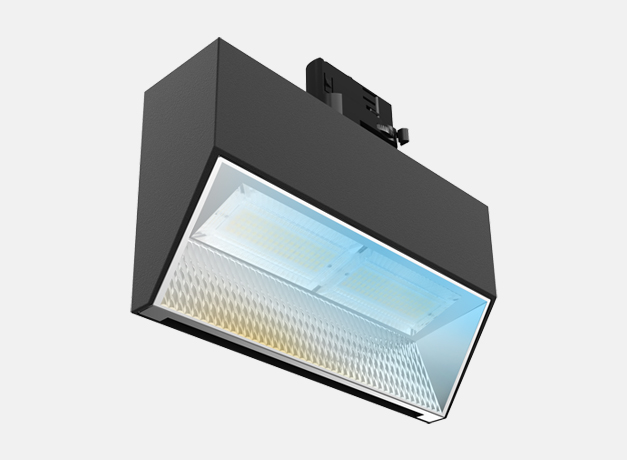

Milo™ LED track wall washer light is one of the world premium wall washer light. It is designed with asymmetric distribution to create a very even vertical lighting, and delivers up to 6,000 / 4,800 /3,000 lumens in one model with tunable white from 2700K to 6500K. The complete Milo Wall Washer also have single CCT, or 3in1 CCT option. The uniform high quality light in multiple color temperatures and powers in just one fixture, making it an excellent choice for all possible applications. 90°aiming horizontal; 360° vertical rotation allow to light where needed. All of this is combined with efficiency sure to turn heads – an incredible 140lm/W!
Application
Ideal for commercial, supermarket, retail displays, showrooms, art gallery and hospitality applications
Features & Benefits
Patented design
Up to 6000lm of 140lm/W system efficacy
Flicker free compliant to IEEE 1789 and the new ErP regulation of EU 2019:2020
360° rotating head and 90° pivot
DALI-2 and DALI DT8 under developing, which compatible with both DALI-2 system
Qualified and tested in DALI house according to IEC 62386 Part 101,102(DALI-2), 207, 209
Standby power <0.5W according to European Ecodesign Directive
Sleek & slim without visual screw and countersunk pivot
Superior coverage and use fewer fixtures
Uniform illumination from top to bottom, free of hot spots or visible striations, discoloration.
Excellent cutoff and glare light control
Arrangement distance a/H=1/3 via asymmetric wall washer
Texture black and texture white finish
Long Lifespan: >50,000hrs(L70B10)
CE, CB, SAA, Ctick qualified
5-year factory guarantee
Datasheet
Input Power(W):50W-40W-30W (Preselected 50W)
Input Voltage(VAC):220-240
Power Factor:0.95
Optional Beam Angle(°):asymmetric 60x90
Lifespan (hrs): >50,000hrs@ Ta=25°C
Base: 6 wires 3 circuits DALI track systems
Dimming: DALI DT8
Adjustment:90°aiming; 360° rotation
Lumen Output & CRI:
Lumen Output @Ra80+ | |||
CCT(K) | 50W | 40W | 30W |
2700-6500 | 6000lm | 4800lm | 3900lm |
Note: The above data were measured with chrome reflector & 4000K.
10% lumen less compared the other CCT when select to 3000K
Lumen different between power selection: 50W: 40W: 30W=100%: 81%: 66%
Housing Finish Color: Texture White, Texture Black
Reflector Finish Color: Chrome; Bright White(on request)
Note: 4% lumen less with white reflector compare to chrome reflector
