Xline Plus Suspension Series: Continuous Linear LED Luminaries

  • photo name

Features Highlight

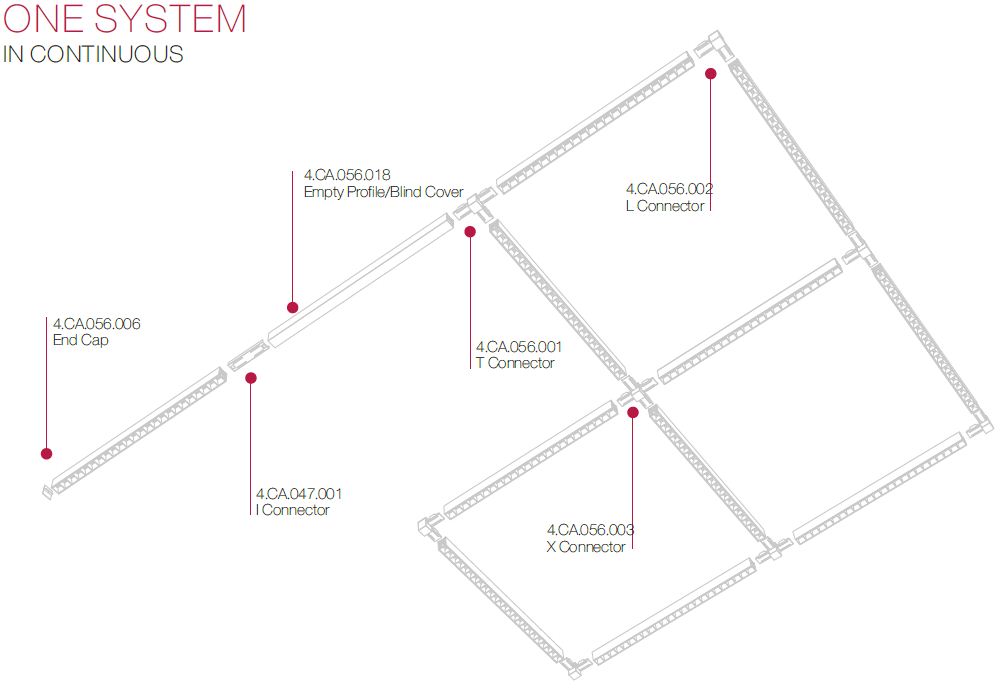

Seamless continuous & looping design with I, L, T, X connectors

Direct lighting, or Indirect & direct lighting

Optic solutions: general lighting, aisle lighting and wall washer and shelve lighting.

UGR 19, 22 depends on optics solution

Lighting congtrol system: DALI-2, 1-10V(ON/OFF); Zigbee, Bluetooth and Wiz(on request)

Quick continuous installation with pre-wires connectors

Smart lighting control by DALI DT8(Zigbee and Bluetooth on request)

CCT: 3000K, 4000K, 5000K, (Tunable White or other CCT on request)

Ultra-compact, aesthetic and minimalist, and no visible screws

High Efficacy of 110lm/W system efficacy

Flicker Free according to IEEE 1789, Title 24 and DLC

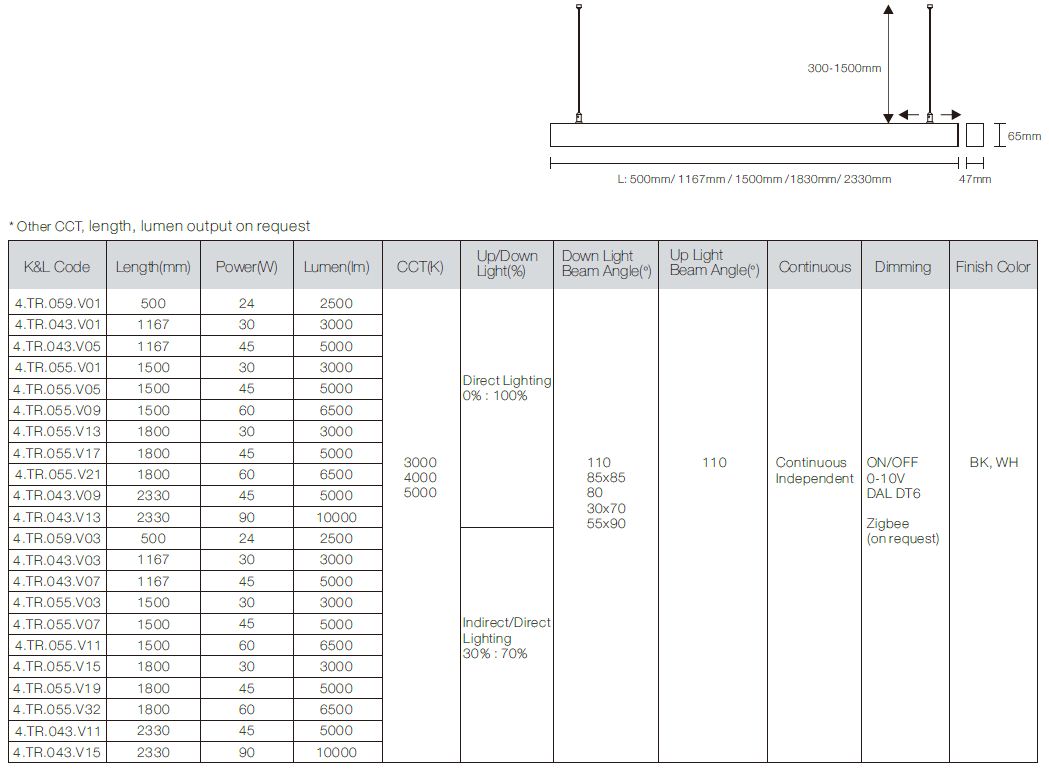

Product Datasheet

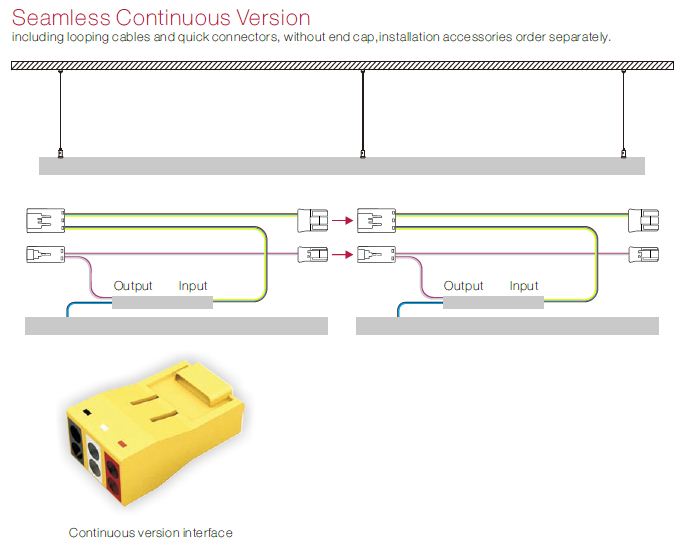

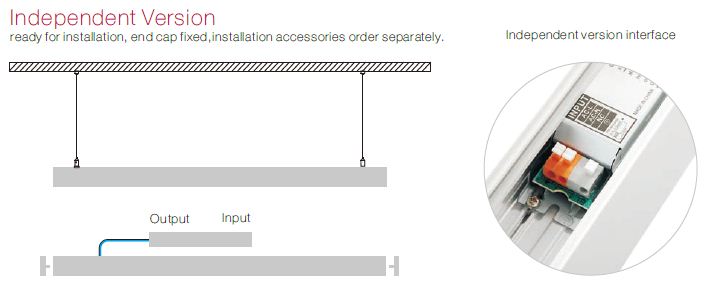

The differences between contributions version and independent version

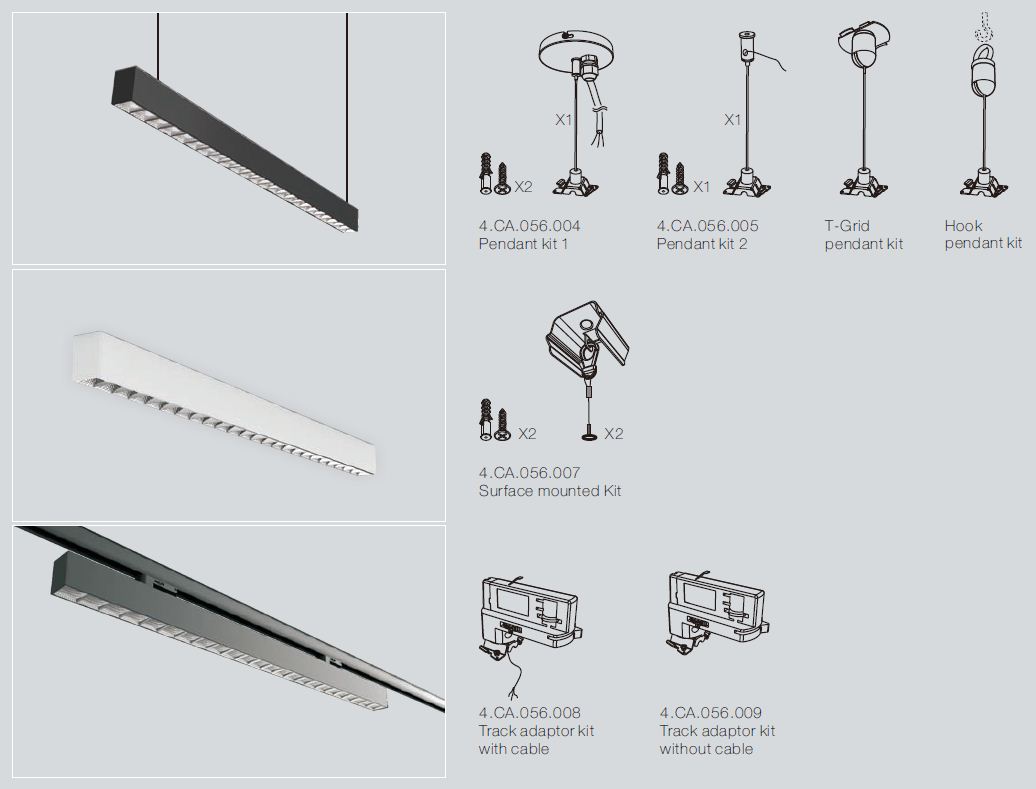

Installation Accessories Ordering Guidance


Continuous Accessories Ordering Guidance
