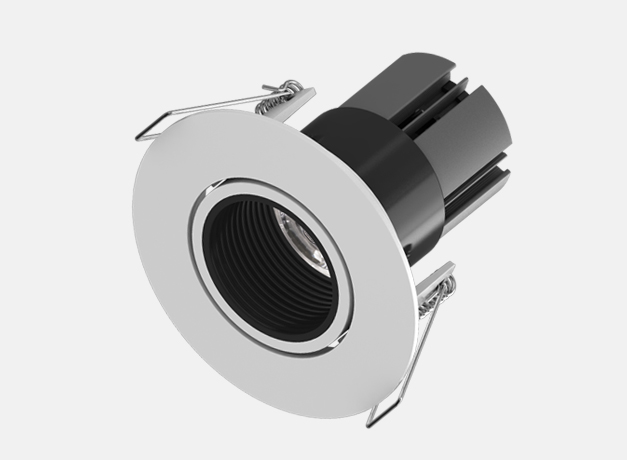

FEATURES:
• Modularized and exchangeable design for the independent light accessories of LED source, external trims, power supply, optics and more.
• Interchangeable optics with 15° 38° and 60°.
• Triac a dimming control solution, helping adjust the brightness conveniently.
• Low profile and IC rated design, appropriate for insulated ceiling applications.
• Excellent color rendering index reaching up to 90, helping provide exceptionally high quality lighting
• CE,ROHS, SAA approved
• Anodized extruded aluminum heat sink,
SPECIFICATION:
Product Code | 4.DL.127.C02 | 4.DL.127.C01 | 4.DL.127.C03 | 4.DL.136.C01 | 4.DL.127.A01 | 4.DL.136.A01 |
Product Name | Evolite 68F600 | Evolite 68F830 | Evolite 68F1150 | Evolite 68 600 | Evolite 68F500 DTW | Evolite 68500 DTW |
Input voltage | 220-240V | 220-240V | 220-240V | 220-240V | 220-240V | 220-240V |
Adjustable | Fixed | Fixed | Fixed | Adjustable(±20) | Fixed | Adjustable(±20) |
Max LED Power(W) | 6.5 | 7.9 | 10 | 6.5 | 6.5 | 6.5 |
Max. LED Current(mA) | 180 | 220 | 280 | 180 | 350 | 350 |
LED Voltage | 36 | 36 | 36 | 36 | 18 | 18 |
Lumen Output | 600lm | 830lm | 1050lm | 600lm | 500 | 500 |
Beam Angle | 38°, 60° | 38°, 60° | 38°, 60° | 38°, 60° | 38°, 60° | 38°, 60° |
Power factor | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
External Dimmable Driver | Phase-cut,DAL-2&Push-DIM,1-10V,ON/OFF | |||||
CCT Option | 2700K,300K,4000K Tunable White on request | 2000K-3000K Dim to warm | ||||
CRI Option | CRI82, CRI 90 | CRI82, CRI 90 | CRI82, CRI 90 | CRI82, CRI 90 | CRI 95 | CRI 95 |
Dimension(mm) | D82*H37 | D82*H37 | D82*H37 | D82*H32 | D82*H37 | D82*H32 |
Cut-out(mm) | 66-75 | 66-75 | 66-75 | 66-75 | 66-75 | 66-75 |
Suitable for Ceiling Thickness | 1-20mm | |||||
Direct Insulation Coverable | Yes | Yes | NO | Yes | Yes | Yes |
Air-tight | Yes | Yes | Yes | NO | Yes | NO |
Electrical Connection | Push-fit looping terminals | |||||
Finish | Black, White | |||||
Carton Size(cm) | 75x29x26 | 75x29x26 | 75x29x26 | 75x29x26 | 75x29x26 | 75x29x26 |
Qty./Carton(pcs) | 50 | 50 | 50 | 50 | 50 | 50 |
