Features & Benefits
Patented 3 CCTs & 3 wattages in one design
Up to 6000lm of 140lm/W system efficacy
DALI-2 dimmable, compatible with both DALI-2 system & DALI-1 system
Standby power <0.5W according to European Ecodesign Directive
Flicker free compliant to IEEE 1789
360° rotating head and 90° pivot
Sleek & slim without visual screw and countersunk pivot
Superior coverage and use fewer fixtures
Uniform illumination from top to bottom, free of hot spots or visible striations, discoloration.
Excellent cutoff and glare light control

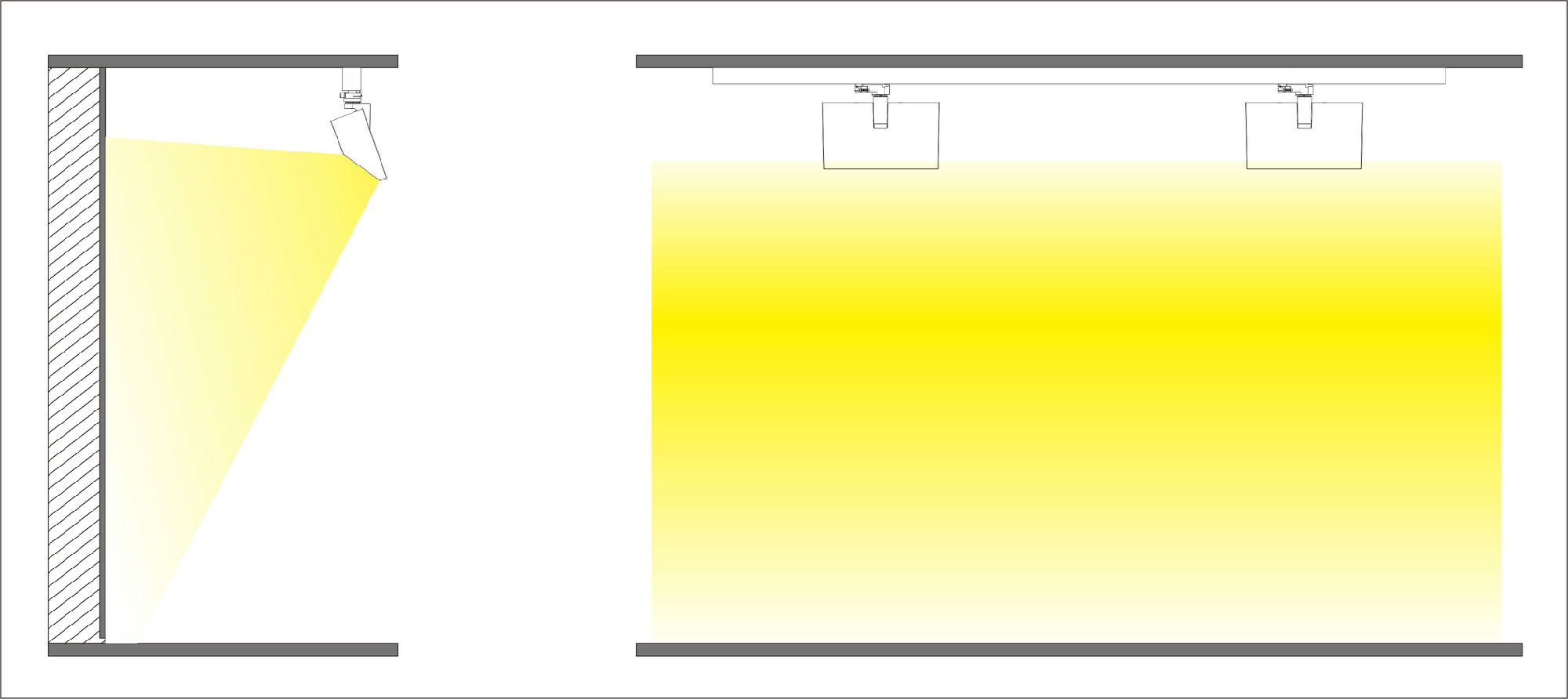

Arrangement distance a/H=1/3 via asymmetric wall washer
Good color consistency: with 3 step SDCM
Long Lifespan: >50,000hrs(L70B10)
cETLus, CE, CB, SAA, Ctick qualified
5-year factory guarantee
Datasheet
Input Power(W):50W-40W-30W (Preselected 50W)
Input Voltage(VAC):220-240
Power Factor:0.95
Optional Beam Angle(°):asymmetric 60x90
Lifespan (hrs): >50,000hrs@ Ta=25°C
Base: GLOBAL Trac Pulse, Powergear Pro-D680, Eutrac Data bus
Dimming: DALI DT6
Adjustment:90°aiming; 360° rotation
Lumen Output & CRI:
Lumen Output @Ra80+(Ra90 on request) | |||
CCT(K) | 50W | 40W | 30W |
3000K-3500K-4000K (Preselected 4000K) | 6000lm | 4800lm | 3900lm |
Others Mixture (on request) | / | / | / |
Single CCT (on request) | 6000lm | 4800 | 3900 |
Note: The above data were measured with chrome reflector & 4000K.
10% lumen less compared the other CCT when select to 3000K
Lumen different between power selection: 50W: 40W: 30W=100%: 81%: 66%
Housing Finish Color: Texture White, Texture Black
Reflector Finish Color: Chrome; Bright White(on request)
Note: 4% lumen less with white reflector compare to chrome reflector
