Features & Benefits
Wireless controled by Zigbee Protocol
Up to 10 meters communication distance
Patented 3 CCTs & 3 lumens in one design
Up to 6000lm of 140lm/W system efficacy
Universal track systems compatible
360° rotating head and 90° pivot
Sleek & slim without visual screw and countersunk pivot
Superior coverage and use fewer fixtures
Uniform illumination from top to bottom, free of hot spots or visible striations, discoloration.
Excellent cutoff and glare light control

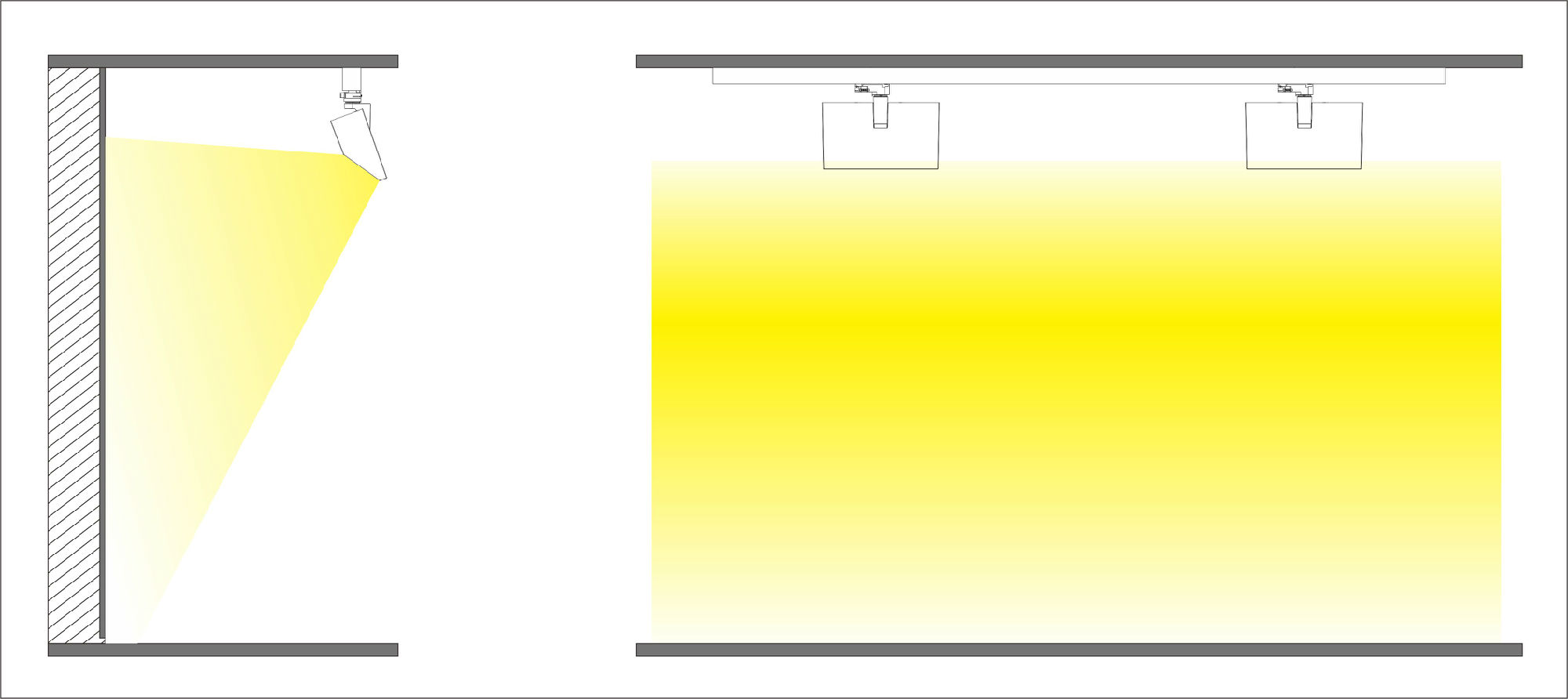

Arrangement distance a/H=1/3 via asymmetric wall washer
Super compact like iPad mini x 4 times thicker
Passive cooling system due to innovative heat dissipation
Texture black and texture white finish
Good color consistency: with 3 step SDCM
Long Lifespan: >50,000hrs(L70B10)
Other dimming option: Bluetooth, ON/OFF(standard); Bluetooth; DALI DT6, DALI DT8, Triac(for North America)
cETLus, CE, CB, SAA, Ctick qualified
5-year factory guarantee
Standby power <0.5W according to European Ecodesign Directive
Datasheet
Model #: 4.TR.078.P34
Input Power(W):50W-40W-30W (Preselected 50W)
Input Voltage(VAC):220-240V
Power Factor:0.95
Optional Beam Angle(°):asymmetric 60x90
Lifespan (hrs): >50,000hrs@ Ta=25°C
Base: H, J, L, Tek, Htek, 4wire 3circuit, Mono-point
Dimming: Zigbee; Other option Non-dim; DALI DT6/DT8 and Bluetooth
Adjustment:90°aiming; 360° rotation
Lumen Output & CRI:
Lumen Output @Ra80+ | Lumen Output @Ra90+ | |||||
CCT(K) | 50W | 40W | 30W | 50W | 40W | 30W |
3000K-3500K-4000K (Preselected 4000K) | 6000lm | 4800lm | 3900lm | 5000lm | 4000lm | 3300lm |
Others Mixture (on request) | / | / | / | / | / | / |
Single CCT (on request) | 6000lm | 4800 | 3900 | 5000 | 4000 | 3300 |
Tunable White | To be upgraded with new driver | To be upgraded with new driver | ||||
Note: The above data were measured with chrome reflector & 4000K.
10% lumen less compared the other CCT when select to 3000K
Lumen different between power selection: 50W: 40W: 30W=100%: 81%: 66%
Housing Finish Color: Texture White, Texture Black
Reflector Finish Color: Chrome; Bright White(on request)
Note: 4% lumen less with white reflector compare to chrome reflector
