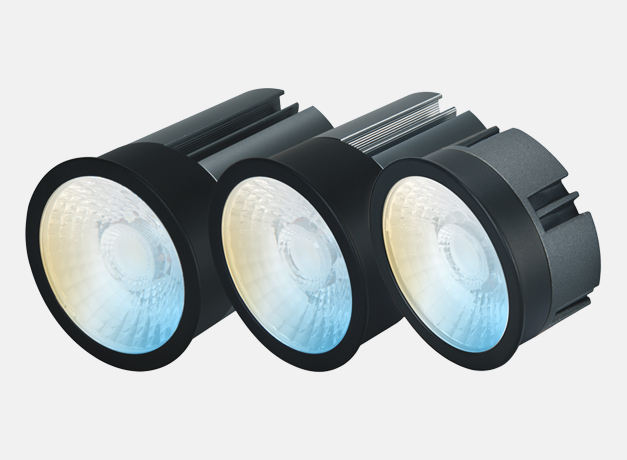

Rocket module is a retrofit for Halogen MR16, but it's high quality performance than the LED GU10/MR16 thanks to the super narrow beam and equipped with various of lighting control. Now, Kinglumi brings the Tunable White function for these modules, which can be tuned from 2700K to 5000K and Ra 90.
It's compatible with all MR16 downlight frame/bezels in the market. Rocket equipped with Multifaceted CAMETA TIR lens that is interchangeable design and allow changing between 15, 38 and 60 degrees USA brands 2 channels COB LED chip powered by DALI DT8, Zigbee, Bluetooth or Wi-Fi. There are full downlight frame include IP20, IP65 normal frame with diverse color choices: white, black, silver finish; IP 20 Deep frame in white finish. Open reflector, wallwash, slot aperture and pin hole option for different use.
Application: Downlights for loft insulation, residential buildings, office, living rooms, houses, hotels. etc.
Features:
· Tunable White from 2700K to 5000K
· Modular design & interchangeable beam angles
· MR16 size, compatible with all MR16 downlight bezels in the market
· Patent CAMETA TIR lens for higher efficiency and less glare
· High color rendering index Ra90
· COB LED chip from famous USA brand
· Quick installation, loop in and loop out system
· Extruded aluminum and anodized finish to bring great heat dissipation effects
· Less than 3 SDCM MacAdam ellipse
· Dimming control: DALI DT8, Zigbee, Bluetooth & Wi-Fi
Specifications:
Model | Lumen | Ra | LED Voltage | LED Current | Beam angle(°） | CCT(K) | Dimming | Dimensions |
4.MR.108.A1x | 800 | 90 | 36VDC | 250mA | 15/ 38/ 60 | 2700 - 5000 | DALI DT8, Zigbee, Bluetooth, Wi-Fi | D50*H65 |
4.MR.108.A2x | 570 | 90 | 36VDC | 180mA | 15/ 38/ 60 | 2700 - 5000 | DALI DT8, Zigbee, Bluetooth, Wi-Fi | D50*H53 |
4.MR.108.A3x | 480 | 90 | 36VDC | 140mA | 15/ 38/ 60 | 2700 - 5000 | DALI DT8, Zigbee, Bluetooth, Wi-Fi | D50*H25 |
